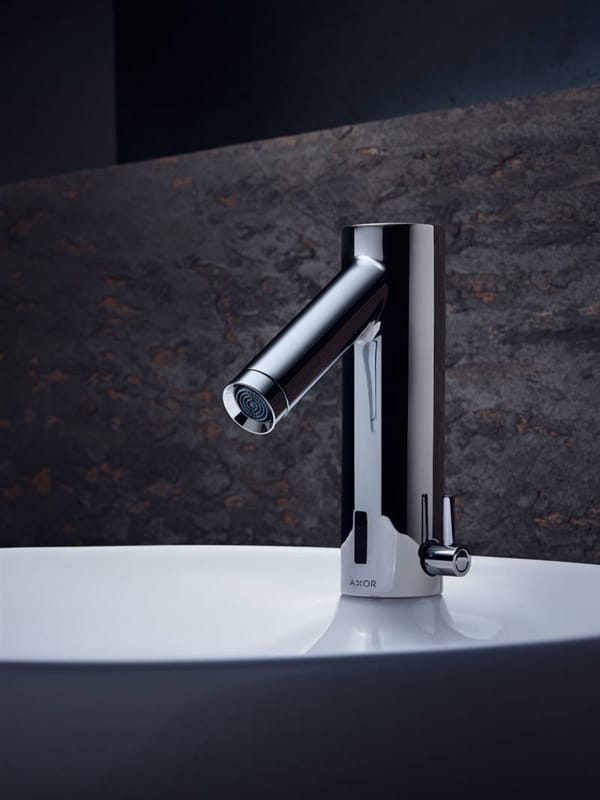

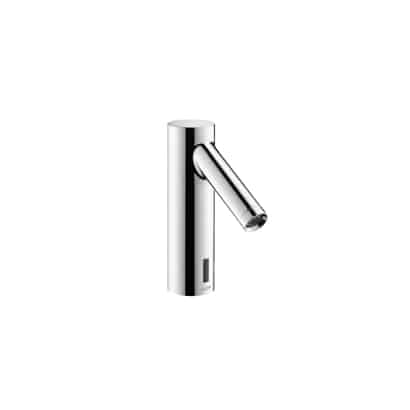

AXOR Starck Electronic Basin Mixer

The AXOR Starck electronic basin mixer works via infared technology. The small lever on the side allows for pre-adjustable temperature changes prior to commencing washing the hands.

For maximum effectiveness, it advised not have the basin mixer more then 75mm away from the hands.

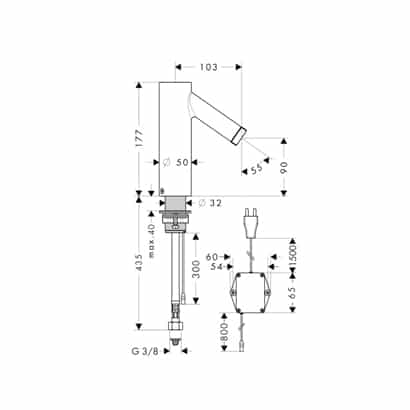

It utilises 230V mains connection and projects 103mm. This is available in all of AXORs PVD finishes which are on display in the showroom.

ComfortZone 90

projection 103 mm

normal spray

flow rate at 3 bar: 5 l/min

temperature pre-adjustable

suitable for continous flow water heaters

infrared sensor technology

automatic environmental adjustment of infrared sensor

adjustable optical range of infrared sensor (2 settings)

230 V / 50 Hz mains connection

hygiene rinse activatable (automatic water flow for 10 seconds every 24 hours following the last operation)

permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)

manual water stop for washbasin cleaning

performance may be impaired if the sensor is obscured by the design of the wash basin, or when the wash basin is oversized and the distance between sensor and the wash basin edge is larger than 75 mm

functional restriction due to too large distance
