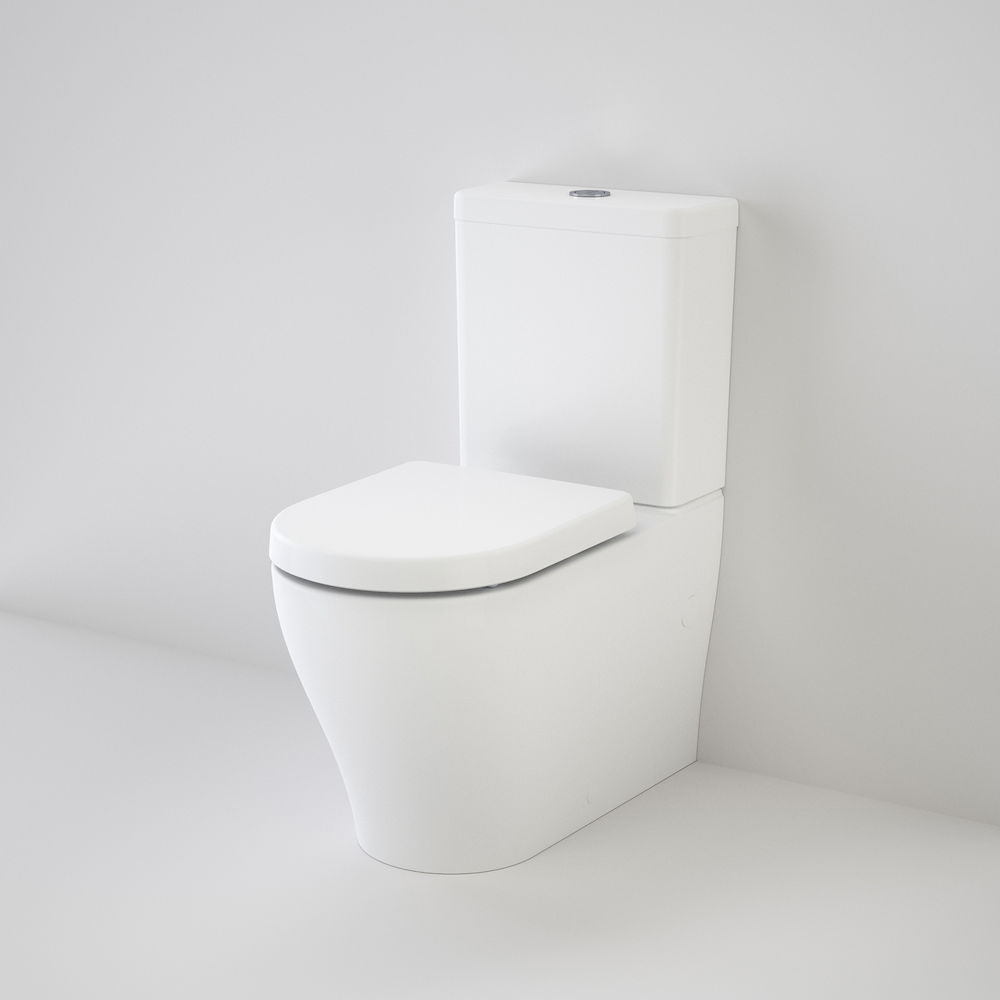

Caroma Luna Wall Faced Toilet Suite – Bottom Inlet

Original price was: $923.00.Current price is: $521.00.

Caroma Luna Wall Faced Toilet Suite – Bottom Inlet is a very popular toilet suite due to its reliable nature and fantastic quality internal parts. These are a very good toilet for replacing an existing pan as it covers a lot of the footprint of older, wider base models from Caroma, Fowler and other brands.

Pan: Luna 4.5 litre full flush washdown pan with box flushing rim.

Traps: Patented Caroma Uni-Orbital® connector supplied for S or P-trap installations.

Cisterns: Caroma Universal cistern – has a free fitting lid and is suitable for domestic and light commercial applications. Available as internal overflow. Available in either bottom

inlet or back entry options. Back entry cistern inlet stop valve is concealed within the cistern. Vandal Resistant Conversion Kit – A simple to install conversion kit is

available for the standard mechanism to lock the lid onto the cistern, recommended for use in heavy duty commercial areas. Code No.750109.

Important: Working pressure minimum 30kPa to maximum 1000kPa flow

pressure. Rain water tank compliant. Accurate wall setout for B.S.P. 1/2″ Nipple water inlet connection is essential.

Fixing: The cistern is fixed directly to the pan with a robust concealed base fixing system without the need for wall fixing.

Seats: The Xena soft close quick release thermoset toilet seat is provided as standard with this suite. See chapter 5.01 SEATS of the Caroma Technical Manual for further details.

Colours: White only.

Installation: The installation of the toilet suite shall be in accordance with the normal minimum drainline grade requirements in AS/NZS 3500.2.

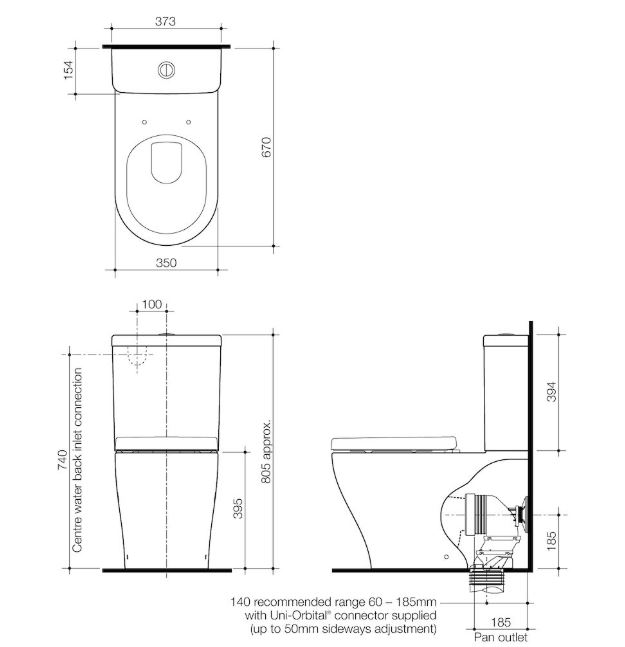

Dimensions: All dimensions are in millimetres and are subject to normal manufacturing variations. Caroma pursues a policy of continuing improvement in design and performance of its

products. The right is therefore reserved to vary specifications without notice.

1 in stock

More Information

Product Specifications

SKU 829710W
Brands Caroma
Dimensions L 670 mm × W 373 mm × H 740 mm
WELS Rating 4 Star
Flow Rate 4.5/3 (Avg 3.5L/min)
WELS Registration L04442
Colours White
