R&T Conversion Kit Complete With Outlet Valve, Base, 50mm Button & Sponge Seal

Imperial Impulse Upgrade: R&T Outlet Valve Conversion Kit

Is your Imperial Impulse (ATS161) flush valve leaking or no longer manufactured? This R&T Conversion Kit is the professional’s choice for retrofitting older Imperial Ware cisterns with a modern, high-performance flushing system.

Because the original Imperial Impulse valves are increasingly difficult to source, this complete kit provides everything you need to upgrade to a reliable dual-flush system that is easier to maintain and widely supported with spare parts.

Why Choose This Conversion Kit?

• Direct Retrofit: Specifically selected to replace the now-obsolete Imperial Impulse ATS161 valve series.

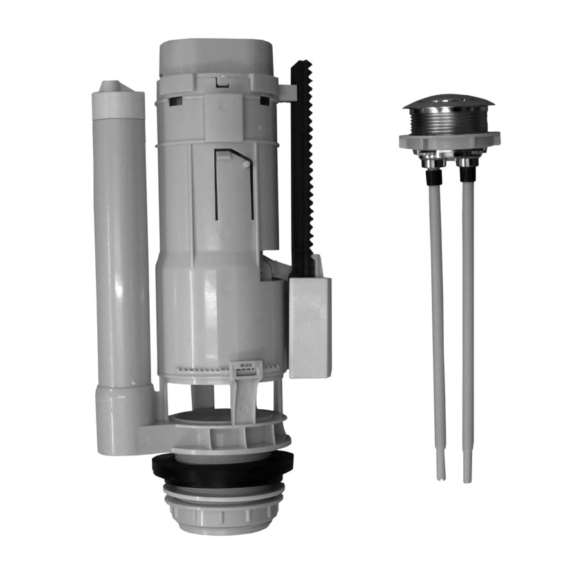

• Complete System: Includes a high-quality R&T outlet valve, an adjustable overflow, a modern 50mm dual-flush button, and a fresh sponge seal for a leak-proof connection between the cistern and pan.

• Superior Durability: Tested for over 100,000 flushes, ensuring years of trouble-free operation compared to older mechanical designs.

• Adjustable Flush: Allows for fine-tuning of water volumes to ensure a powerful flush every time while meeting modern water-efficiency standards.

Installation Guide: Removing Your Old Imperial Valve

To install this kit, you will need to remove your cistern from the toilet pan. This is typically a simple process:

1. Preparation: Turn off the water supply and flush the toilet to empty the cistern.

2. Removal: Disconnect the water inlet and unscrew the two wing nuts/bolts holding the cistern to the pan.

3. Old Valve Removal: Once the cistern is off, unscrew the base nut of the old Imperial Impulse valve to remove it completely.

4. Conversion: Install the new R&T valve base and secure it with the provided sponge seal and nut.

Pro-Tip: Confirm Your Button Size

This kit includes a 50mm button. Before purchasing, check the hole in your cistern lid:

• If the hole is approximately 50mm, this is the correct kit for you.

• Most standard Imperial cistern lids with a round top-press button are compatible with this 50mm upgrade.
