Caroma Water Wafer Compact Panel & Button Replacement Pack

Has your Seal Kit repair failed? If you have already tried the 405178 Seal Kit and your buttons are still sticking or failing to engage the flush, your original button assembly is beyond repair.

This Replacement Pack is your final option. It allows you to replace the old, discontinued internal button mechanisms with the modern Caroma Compact series.

Please read before purchasing: The modern buttons in this kit have a larger diameter than the original 1990s/2000s buttons. To install this kit, you have two choices:

1. The Professional Way: Install the new Compact Panel included in this pack. Ensure your current wall opening can accommodate the new plate dimensions.

2. The “Last Resort” Modification: If you must keep your original stainless steel plate, you will need to manually cut/enlarge the holes in your existing plate to fit the new button diameters.

   • Risk Note: This requires high technical skill and specialized tools for cutting stainless steel. There is a high risk of damaging the plate or leaving sharp, uneven edges.

Genuine Caroma Upgrade Kit This pack is designed to bring your legacy Water Wafer or Invisi MK3 cistern into the modern era. By switching to the new Compact Button logic, you eliminate the friction and perished rubber issues that plague the older designs.

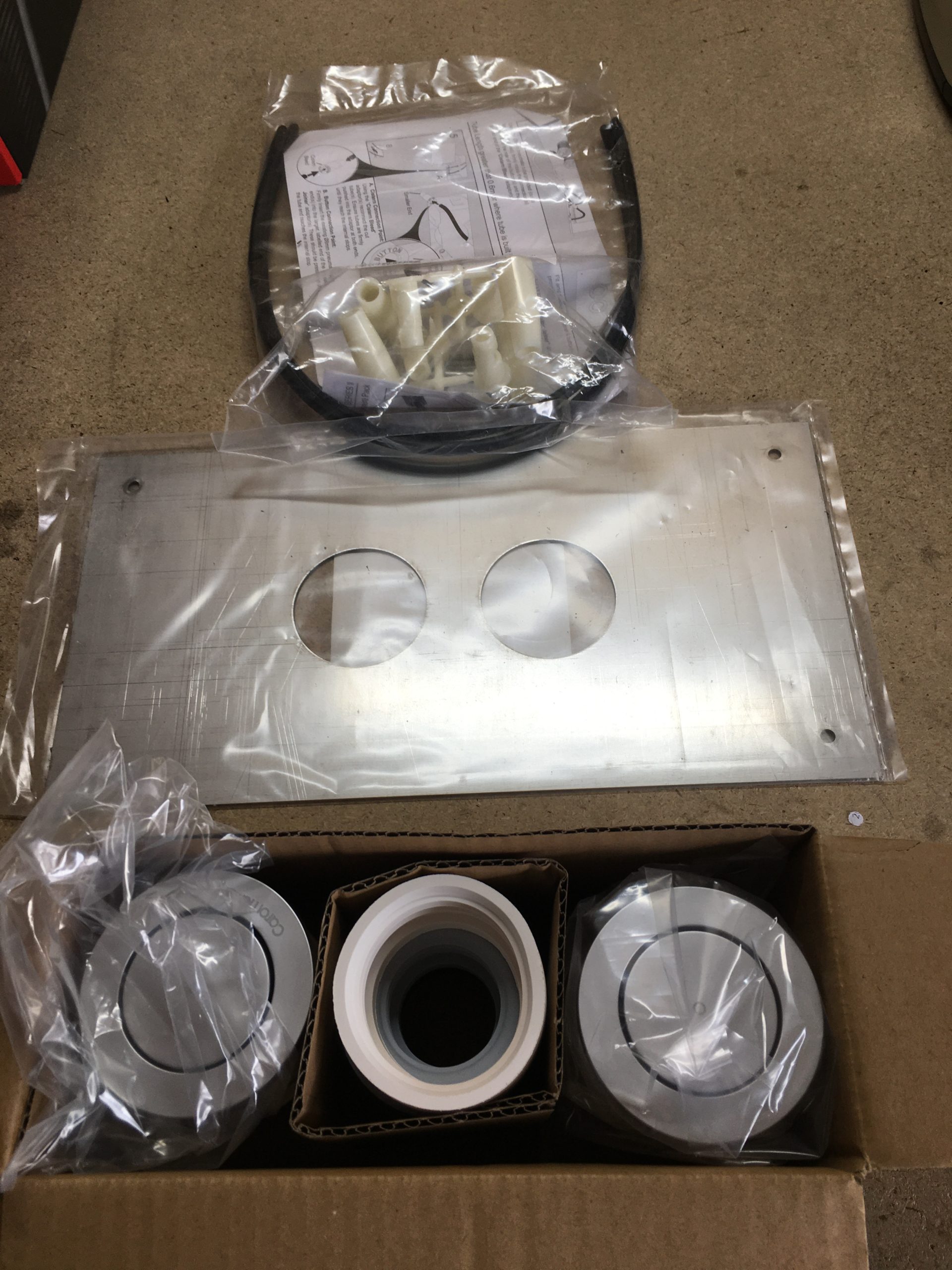

What’s in the box?

• Modern Compact dual-flush button assembly.

• Pneumatic connection hardware.

• New faceplate (to accommodate the larger button size).

The “Complete Fix” Strategy: If your buttons are failing, the issue is often split between the wall plate and the cistern. For a guaranteed fix, we recommend replacing the Slave Bellows at the same time as this button pack.

The Specialist for Caroma Legacy Systems

We understand the frustration of discontinued parts. We stock this “final fix” kit at our Mascot warehouse:

• 8 out of 10 orders delivered on or before time.

• Expert Advice: Unsure if this will fit? Visit our Mascot Showroom with your old plate, and we can show you the size difference in person.

• Fast Pickup: Order online for same-day Uber/Courier pickup.

• Q: Why can’t I just buy the old buttons?

  • A: Caroma has officially discontinued the original button assemblies. This kit is the modern engineering solution to keep those legacy cisterns working.

• Q: Will the new plate cover the old hole in my wall?

  • A: Usually, yes, but you should measure your current wall opening. The new plate is designed to be a “compact” footprint.

• Q: My buttons are stuck “in”—will this fix it?

  • A: This kit replaces the button mechanism. However, if the Slave Bellows in the cistern are also perished, the buttons still won’t “spring” back. We always suggest replacing both for 20-year-old toilets.
