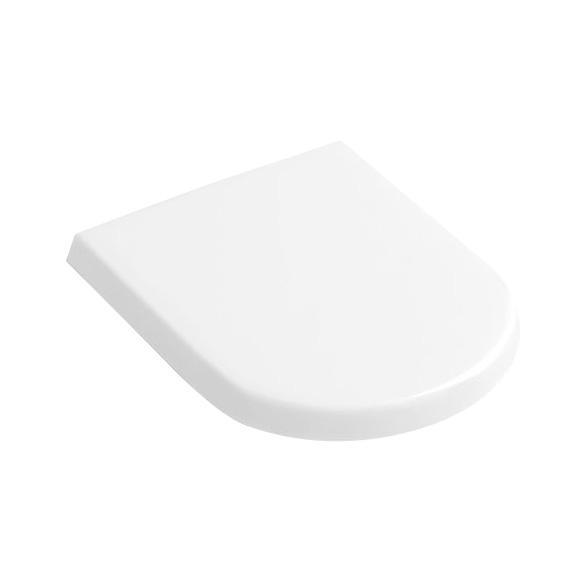

Villeroy & Boch Subway, Loop, Architectura Soft Close Seat Only

Is this the right seat for your Villeroy & Boch toilet? This seat is the official replacement for the “Subway 1.0” design language.

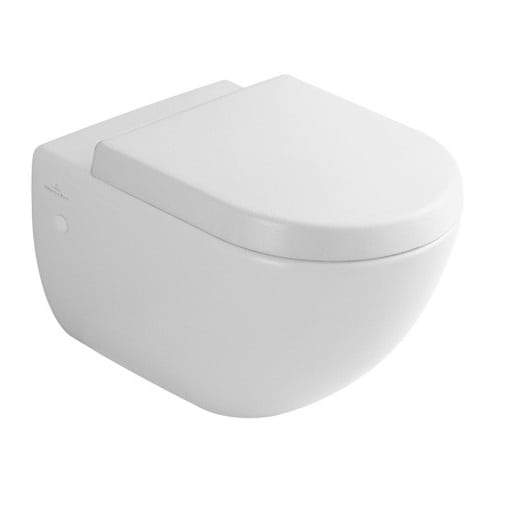

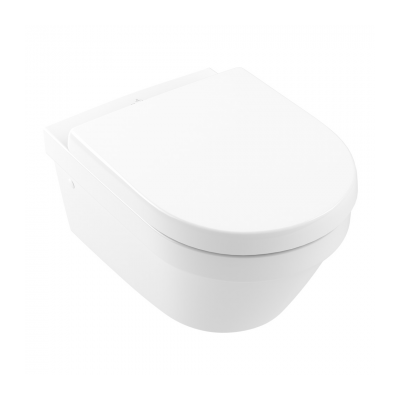

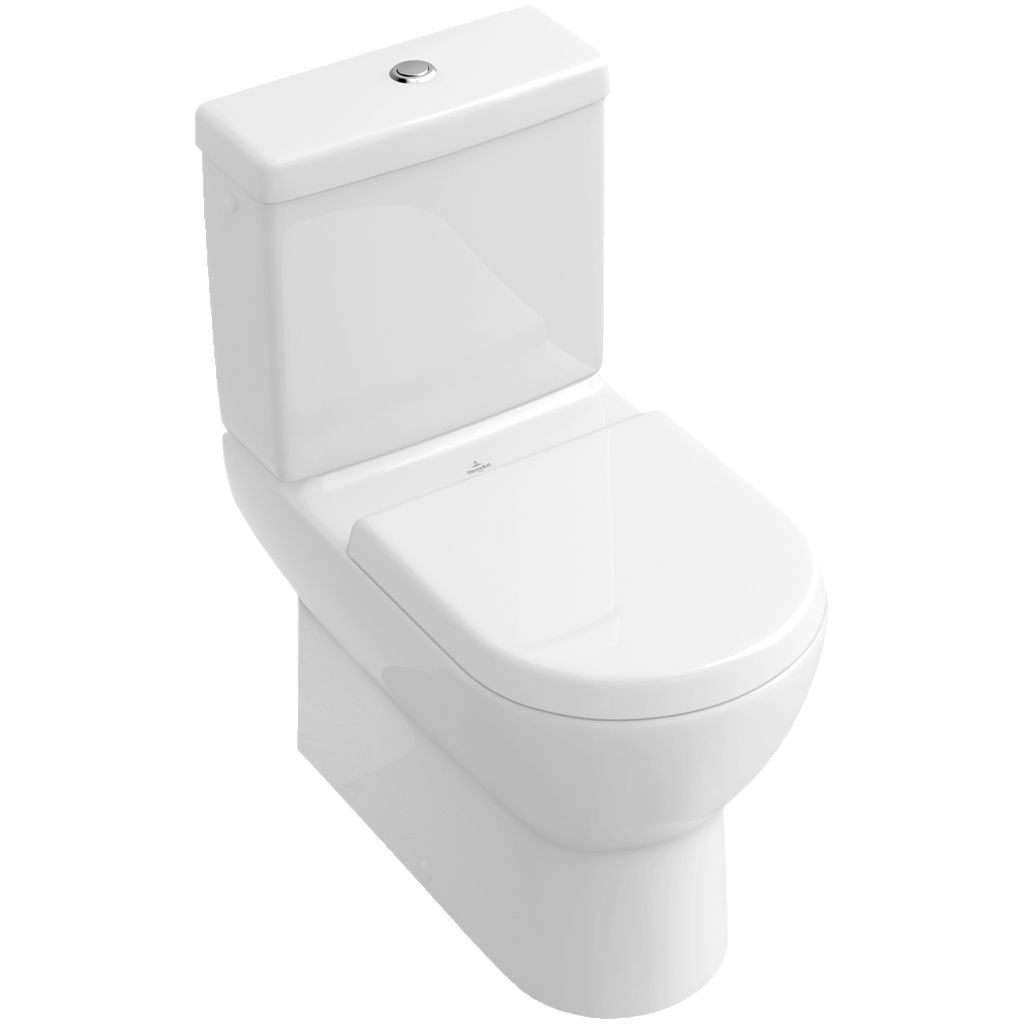

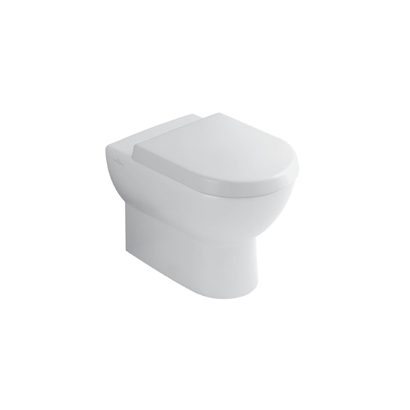

The Match: Perfectly fits the Subway (Original), Loop, Architectura, and Omnia ranges.

The Exception: This seat will not fit the Subway 2.0 or Subway 3.0.

Pro Tip for Wall-Hung Toilets: If you have a wall-hung pan, please check your measurements against our Compact version. The standard 98M9C101 is designed for the full-size floor-standing and standard wall-hung pans.

To ensure this is your seat, please see the information below:
If the measurement is 480mm then you require the compact seat which is a different one.
If your measurement is 565mm then you require the standard seat which is this one you are currently looking at.

To measure the toilet depth, measure from the back of the toilet (the wall) to the front of the pan.

Genuine Haro-Manufactured Seat for V&B This seat is produced by Haro, the leading German specialist in toilet seat technology. It is supplied complete with the C4501H Hinge Kit and the 410148 Soft-Close mechanism pre-installed in the corners.
Material: Heavy-duty Thermoset Resin (Scratch and UV resistant).
Warranty: 1-Year Manufacturer Warranty.

Compatibility: This is the primary replacement seat for the most common V&B suites sold in Australia between 2005 and 2020.

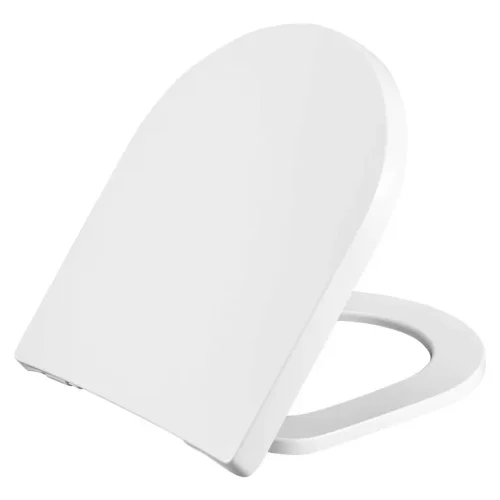

Looking for a lifetime solution? While the genuine Haro seat comes with a 1-year warranty, many of our customers choose to upgrade to the Pressalit Comfort D2-1050 Seat.

Why Upgrade? Pressalit is a Scandinavian luxury brand that offers a 10-Year Warranty.

The Fit: It is specifically engineered to fit the Villeroy & Boch Subway/Loop pan with even greater precision and long-term hinge stability. If you are tired of replacing pistons every few years, this is the definitive “fit and forget” choice.

Q: Does this seat fit the Subway 2.0?
A: No. The Subway 2.0 (and 3.0) uses a different hinge configuration and pan shape. For the 2.0, you require a different specific V&B seat model.

Q: Can I just buy the hinges?
A: Yes, if your seat is in good condition but the soft-close has failed, you can purchase the C4501H Hinge Kit or the 410148 Pistons separately. However, if the seat is over 10 years old, a full replacement is usually more cost-effective.

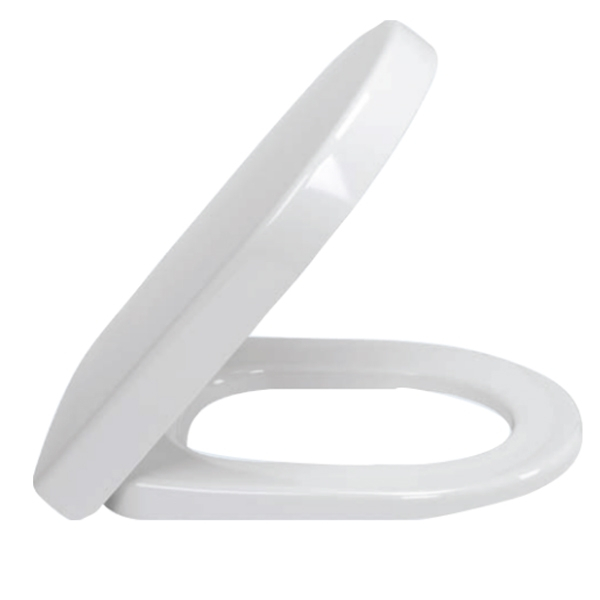

Q: What is the difference between this and the “Compact” version?
A: The Compact version is shorter in length, specifically designed for small-space wall-hung pans. Most standard Australian back-to-wall Subway toilets require this standard 98M9C101 model.

If you are unsure, please email photos of your toilet to sales@sydneybathroomware.com.au
